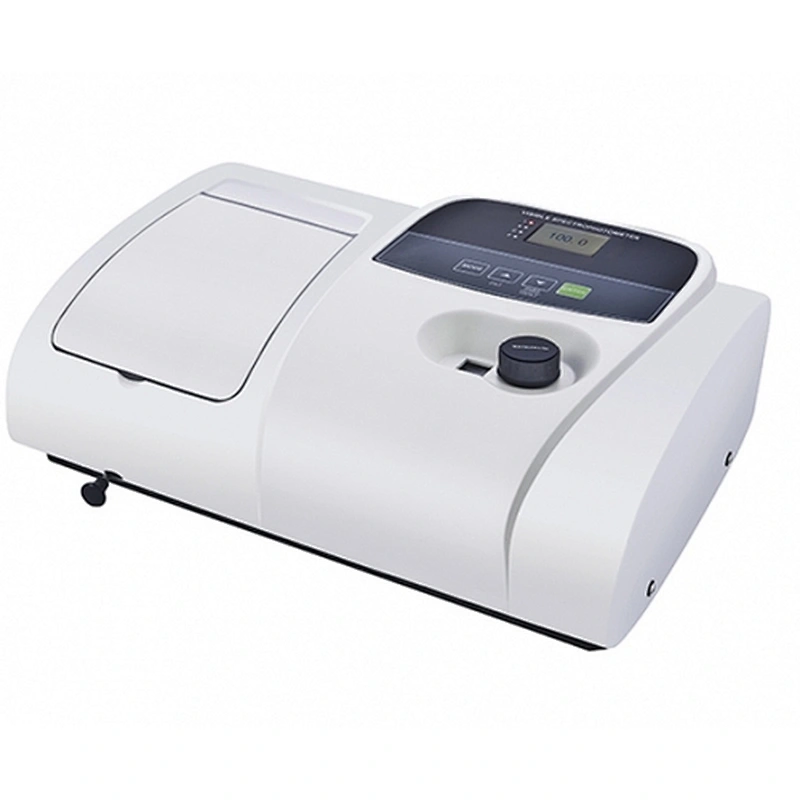

Visible Spectrophotometer

Model NO.: WSL-5000
Price:: US $ 459.00-529.00

Quantity:

Product Description

Visible Spectrophotometer

Specifications

Features

Microprocessor controlled

With microprocessor controlled,CCL-5000 can realize auto Zero and auto 100%T adjustment with one push-button.CCL-5000 has a LCD display instead of LED display for direct readout of Transittance,Absorption,and Concentration.

Grating monochromator

CCL-5000 uses 1200 line grating which ensures high resolution,low stray light and high parameters accuracy.

Date output

CCL-5000 is equipped with USB port which can be connected to PC to edit date through specific software.Date can also be printed through a parallel port when connected to a micro printer.

Compact design, easy to carry

The compact design of CCL-5000 saves bench space while all components function remain performed like 120mm wide sample compartment and long optical path monochromator.

Four Display Mode

CCL-5000 can display absorption,transmittance,concentration and coefficient directly by different mode switching.

Technical Specification

Model	CCL-5000
Optical System	Single Beam,Grating 1200lines/mm
Wavelength Range	325-1000nm
Spectral Bandwidth	4nm
Wavelength Accuracy	±2nm
Wavelength Repeatability	1nm
Photometric Accuracy	±0.5%T
Photometric Repeatability	0.3%T
Photometric Mode	T, A, C, F
Stray Light	≤0.2%T
Stability	± 0.002A/h @ 500nm
Display	LCD
Detector	Silicon Photodiode
Output	USB Port & Parallel Port(Printer)
Light Source	Tungsten Halogen Lamp
Power Requirements	AC 85~250V
Dimension	420280180mm
Weight	8kg
