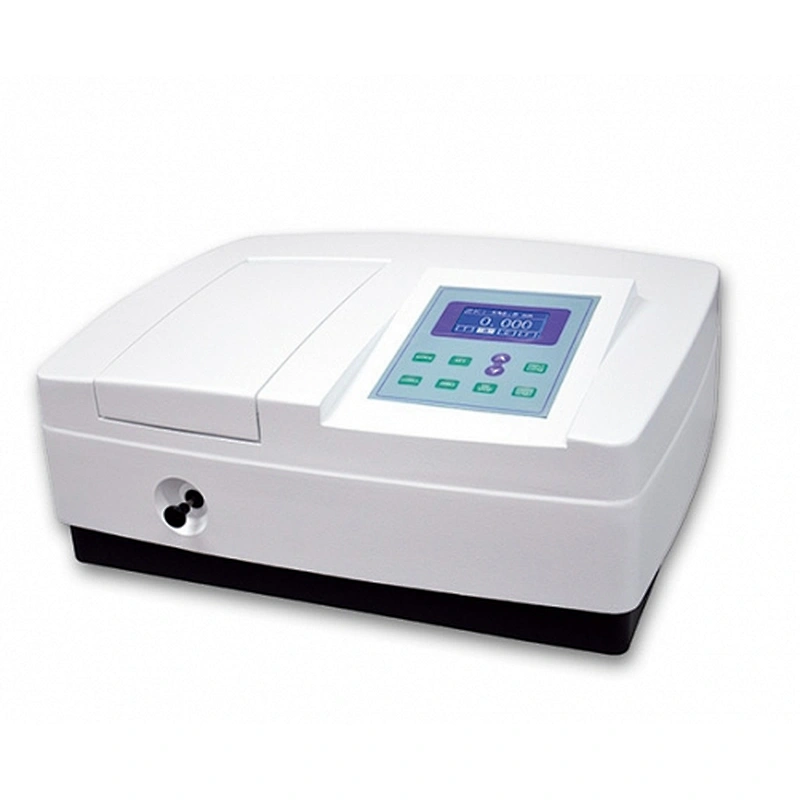

UV/VIS Spectrophotometer
UV/VIS Spectrophotometer

UV/VIS Spectrophotometer

Model NO.
WSL-5100B
Price:
US $ 1359.00-1399.00
Quantity:

UV/VIS Spectrophotometer

Specifications

Features

Low stray light

CCL-5100Bis made of high quality components with rigid structure which ensures low stray light.

Auto setting wavelength

Users can set wavelength automatically through arrow keys to avoid operation errors.

Stability and durability

CCL-5100B users a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.

Date output

CCL-5100B is equipped with USB port to connected with a PC to display spectrum scanning,kinetics and multi wavelength testing results on the screen. The software is optional.

Standard curve

CCL-5100B can set up various standard curves according to customer's solutions and find the concentration of unknown solutions.

Multiple results readout

CCL-5100B can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.

Technical Specification

Model

CCL-5100B

Optical System

Single beam, Grating 1200 lines/mm

Wavelength Range

190-1000nm

Bandwidth

2nm

Wavelength Accuracy

±1nm

Wavelength Repeatability

0.5nm

Wavelength Setting

Auto

Photometric Accuracy

±0.5%T

Photometric Repeatability

0.3%T

Photometric Range

-0.3-3A

0-200%T

Stray Light

≤0.3%T

Stability

± 0.002A/h @ 500nm

Display

128*64 LCD

Detector

Silicon Photodiode

Light Source

Tungsten & Deuterium lamp

Output

USB Port & Parallel Port(Printer)

Power Requirements

AC 85~250V

Dimension

490*370*220mm

Weight

15kg
