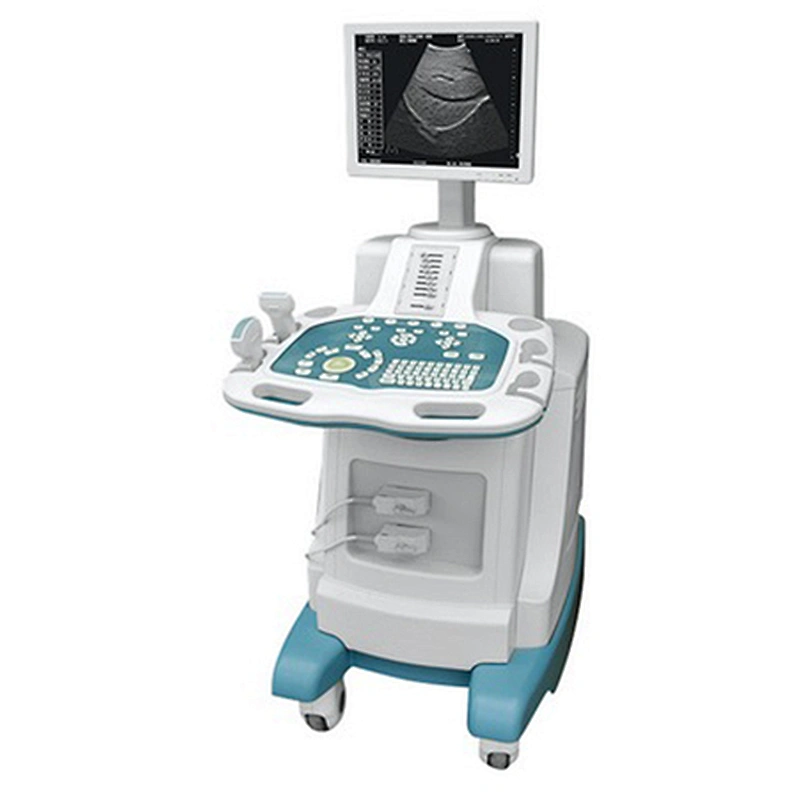

Digital Trolley Ultrasound Scanner with one 3.5HZ convex probe

Digital Trolley Ultrasound Scanner with one 3.5HZ convex probe

Specifications

Application: Abdomen, OB/GYN, Small Parts, Vascular, Anaesthesia, Emergency, Breast, VeterinaryStyle:TrolleyTypes: Black and White

Standard configuration:
Main unit 1 set
Power line 1pc
Ground line 1 pc
Fuse 4 pc
User’s manual in English 1pc
Packing list 1pc
Warranty card 1pc
Convex Probe

Introduction:
This product is suitable for the diagnosis of the soft tissue of the human dynamic graphics, such as the liver, gallbladder, kidney, spleen, pancreas, uterus, bladder, fetal, and family planning to check pregnant, check ring, obstetrics and gynecology.

Main Features:
Powerful measurement & calculation software packages
8-Segment TGC adjustment
15 inches LCD screen
OB measurements: BPD, GS, CRL, FL, AC, HC, etc
Permanent function of image store: 32 images
Back-lit keyboard
2 probe connectors
Probe automatic identification

Main Technical Specification:
Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 33;
Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm<170mm);
Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm<160mm);
Gamma: 4 gray scale γ transform function;
Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;
Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.
Fixed characters and real-time clock and calendar display;
Software reset function;
Printer function: can connect laser printer and Video printer directly;
Comment: Date, Name, Sex, Age, Hospital, Annotation;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;
Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50HZ/60HZ;
Probe connector: 2;
USB/VGA/ ports;
Video connector;

Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight
Heart menu: Distance, Time, Slope, Rhythm<160mm);
<170mm);


Optional
Probes
7.5Mhz high frequency linear probe
Applications: Breast, small parts, nerve, vascular, venous access,
musculoskeletal, biopsy guidance


5.0Mhz micro-convex array probe
Applications: Abdominal, Urology, vascular，Pediatric cardiology, pediatric abdominal, neonatal heads,Small animal


7.5 Mhz transvaginal probe
Applications: Obstetrics, gynecology


7.5Mhz Trans-rectal probe


3.5Mhz convex array probe
Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block,
Procedure and Biopsy guidance




Printer
Any Video Printer, you can buy from your native market.
We suggested model is Mitsubishi Brand Video Printer P93C

Package Size: 40*30*25cm

GW: 4kg

ISO CERTIFICATE
