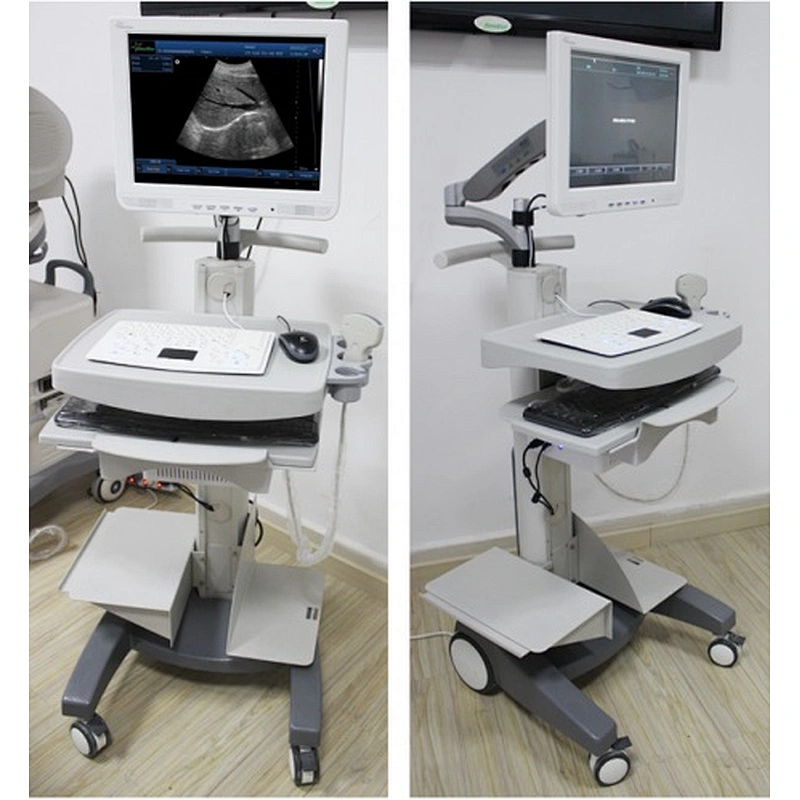

15 inch Touch Screen Trolley Ultrasound Scanner with 3D Functions With one 3.5HZ convex probe

15 inch Touch Screen Trolley Ultrasound Scanner with 3D Functions With one 3.5HZ convex probe

Specifications

Application: Abdomen, OB/GYN, Small Parts, Emergency, Veterinary, 3DStyle:TrolleyTypes: Black and White

Standard Configuration:
·Host 1 unit
·Ultrasound keyboard 1 pcs
·Computer keyboard 1 pcs
·Computer mouse 1 pcs
-Convex Probe

Feature:
-Full digital imaging technology
-Crystal-clear Image
-Computer platforms, Abundant functions

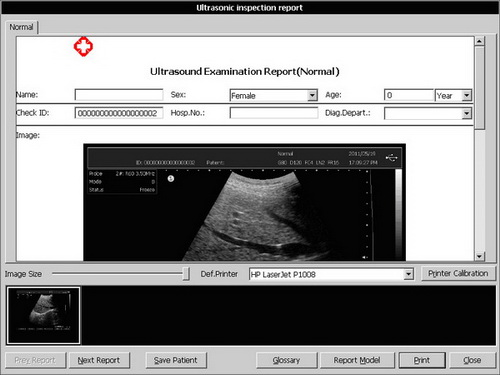

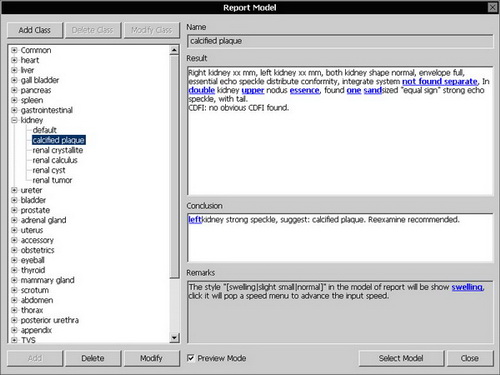

-Powerful image and report management
-3D Image Function(optional)
-DICOM display and transfer
-250G large Storage volume
-Broadband Multi-frequency probes
-Compatible with USB laser/inkjet printers
-Pretty and new appearance
-15 inch touch screen color LCD monitor
-Silica gel backlight waterproof keyboard
-8 segment TGC, 16 step zoom
-Complete application software packages
-Can work with external battery(option)
-2 probe connector
-Can be fold, the transportation is convenient and lower freight

-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.

Specification:
-D-Maximum Scanning Depth: max.250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop: max.1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
Real-time Zoom on B mode

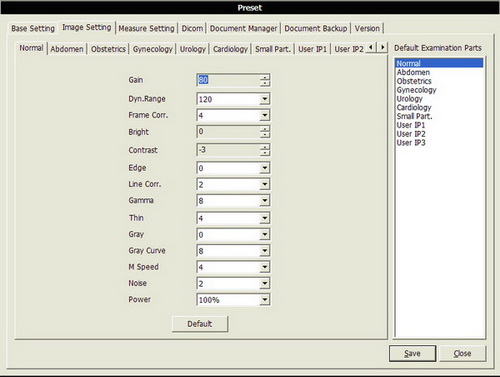

-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB;
Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Monitor: 15 inch touch screen color LCD monitor
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA

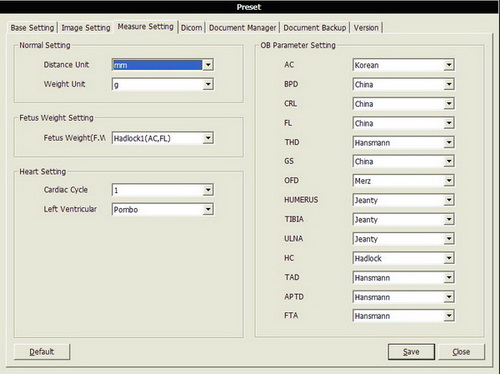

-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
-Measurement and calculation(veterinary):
Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD;
Sheep: BPD, CRL, TD
-Image store: by 250G hardisk or USB disk
-Print: by USB laser/inkjet printers

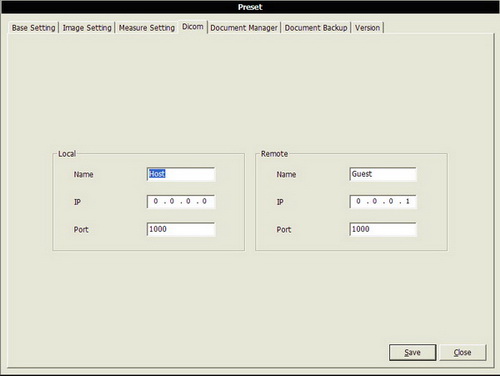

-DICOM3.0, medical digital imaging and communication
-Probe Connector: 2
-Weight: Around 28kg

Optional Information

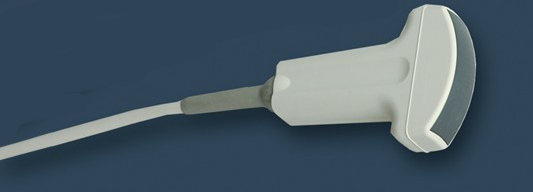

3.5Mhz Convex Probe, 2-5mhz
Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block,
Procedure and Biopsy guidance

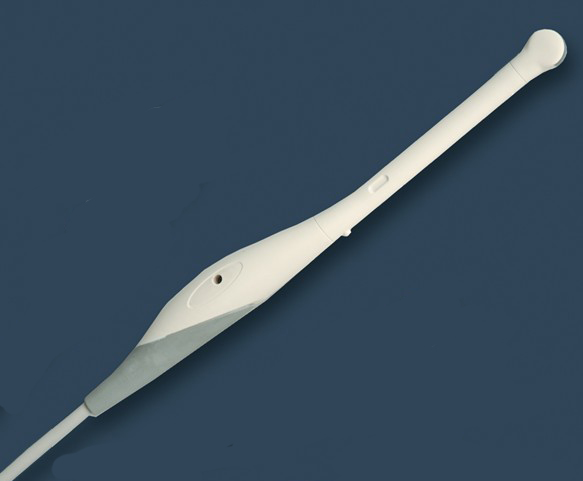

6.5Mhz Transvaginal Probe, 5-8 mhz
Applications: Obstetrics, gynecology

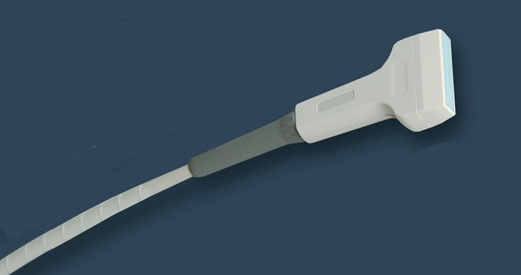

7.5Mhz linear Probe, 5-10 mhz
Applications: Breast, small parts, nerve, vascular, venous access,
musculoskeletal, biopsy guidance

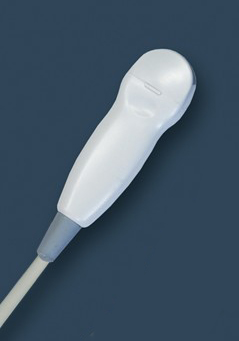

5Mhz micro-convex probe; 2-8 mhz
Applications: Abdominal, Urology, vascular，Pediatric cardiology, pediatric abdominal, neonatal heads,Small animal


Battery
Configuration is without Li battery, if you need Li battery. It can support machine work over 3 hours.

3D Functions;
Support 3D imagine

Printer

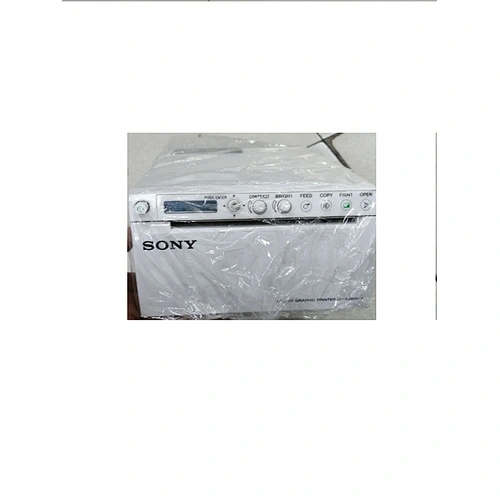

Video printer, SONY UP897

Video printer, Mitsubishi P93C

B/W Laser Printer,
Color Laser Printer
Inkjet Printer
suggest you buy from your native market.

Imagine Photos
