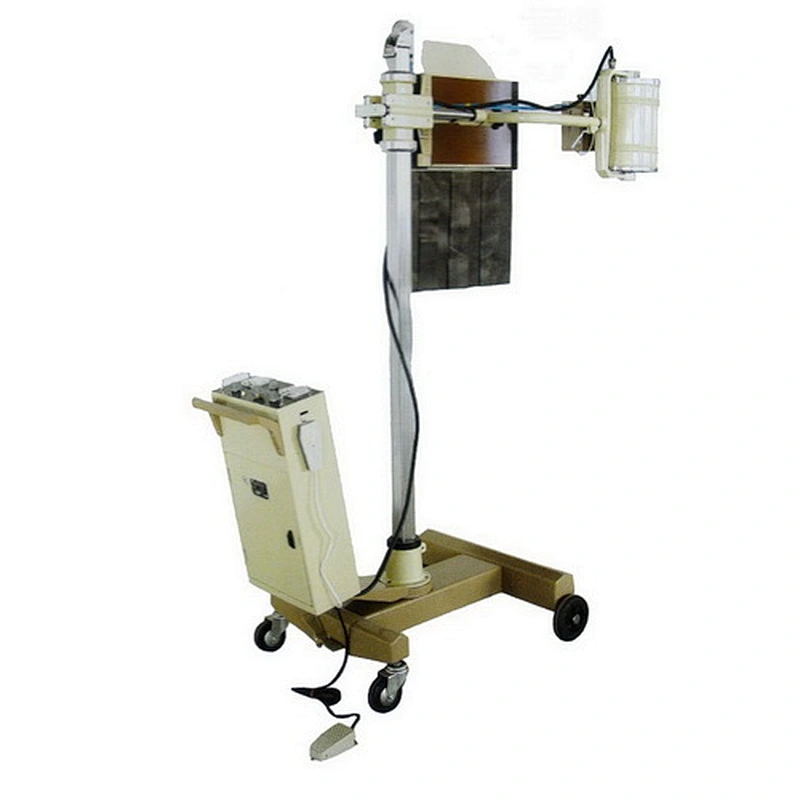

30mA Mobile X-ray machine Fluoroscopy and Radiography

30mA Mobile X-ray machine Fluoroscopy and Radiography

Specifications

-----------------------------------------------------------

MA: 30ma

Type: Portable/Movable

Feature

-----------------------------------------------------------

1.Can be used in ward and emergency treatment room for fluoroscopy and radiography.

2.X-ray generator is combined.

3.Single focus, bridge rectification.

4. It is precise, safe, reliable and flexible.

5. A wireless remote control device (control range≥5 m) is used.

Main technical parameter

-----------------------------------------------------------

X-ray generatorStationary anode, single focus,

and bridge silicon rectification,

The X-ray generator is an

oil-immersed self-cooled unit.

Max rated capability85kVp,30mA

Power supplyVoltage: 180~240V

Frequency: 50Hz

Power: not lower than 3kVA

Resistance: not larger than 0.7Ω

Voltage adjustment range of x-ray tubedivided into 8 steps 50~85kVp

Range of the timer0.2~10 s

Fluorescent screen size280 mm×350 mm

Distance between the focus to the screen 700 mm

Tube head carriage movement rangevertical: 1100 mm

horizontal: 160 mm

The rotation angle of tube head carriage90°

The rotation angle of the controller

and the accessory case80°

Specification of X-ray tube Model XD 1-3/100 fixed anode,

single focus 2.3mm

Transport dimension1650×880×600 mm

Net weight, Gross weightNET 98kg/ GROSS 164kg

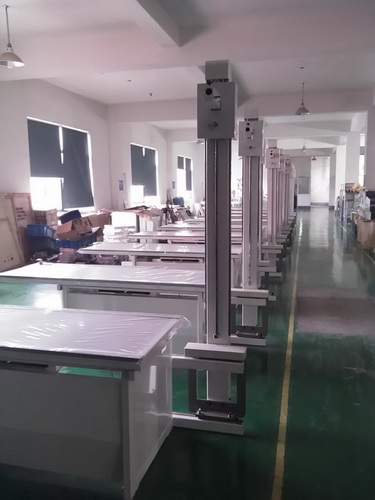

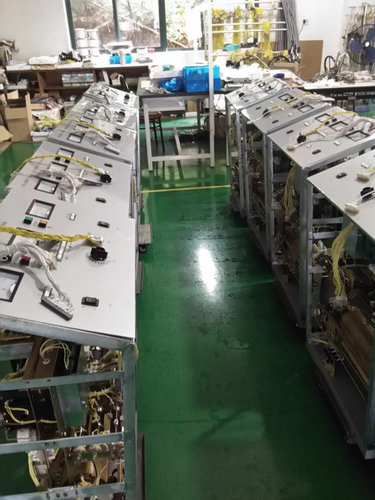

Factory Display

-----------------------------------------------------------
