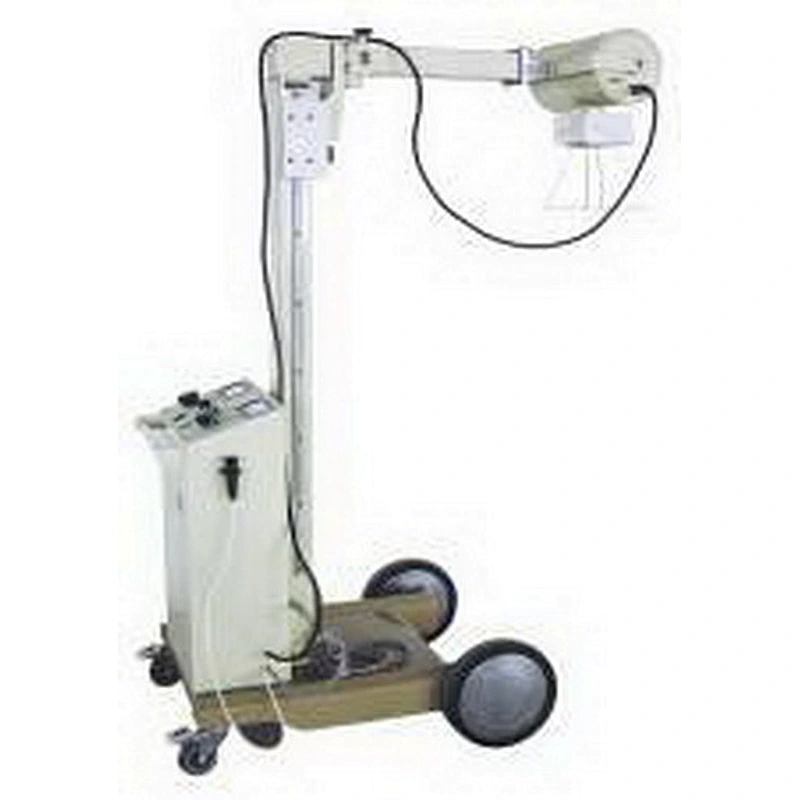

100mA Mobile X-ray machine

100mA Mobile X-ray machine

Specifications

-----------------------------------------------------------

MA: 100ma

Type: Portable/Movable

Feature

-----------------------------------------------------------

1.Can be used in ward and emergency treatment room for fluoroscopy and radiography.

2.X-ray generator is combined.

3.Single focus, bridge rectification.

4. It is precise, safe, reliable and flexible.

5. Remote control device (control range≥5 m) is used.

Main technical parameter

-----------------------------------------------------------

X-ray generatorStationary anode, single focus, and bridge silicon

rectification, The X-ray generator is an oil-immersed

self-cooled unit.

Max rated capabilityCurrent15mA30mA60mA 100mA

Voltage90kvp90kvp90kvp80kvp

Time6.3s6.3s4.0s3.2s

Power supplyVoltage180～240V

Frequency50Hz

Powernot lower than 7kVA

Resistancenot larger than 1Ω

Voltage adjustment range of x-ray tube50～90kVp

Range of the timer0.08～6.3 s

Distance between the focus to the ground700～1780 mm

X-ray tube focus transverse rotation±60°

Specification of X-ray tubeXD4 2.9/100 Stationary anode, single focus

Transport dimension，Weight1230×900×2050(mm)，(NET)159kg/(GROSS)256kg

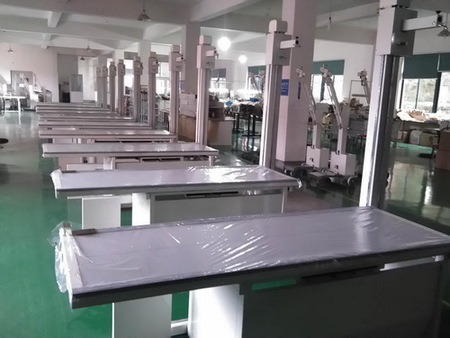

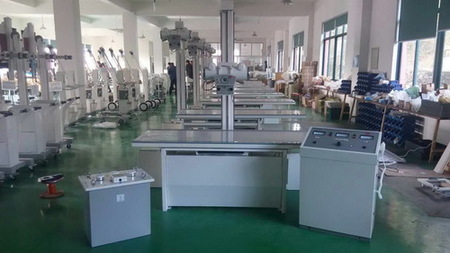

Factory Display

-----------------------------------------------------------
