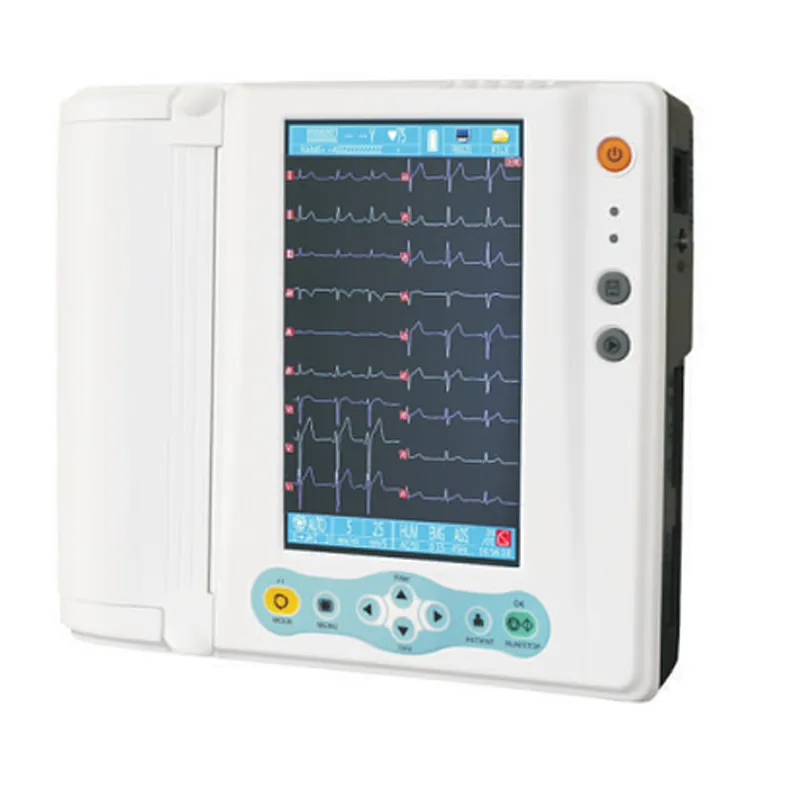

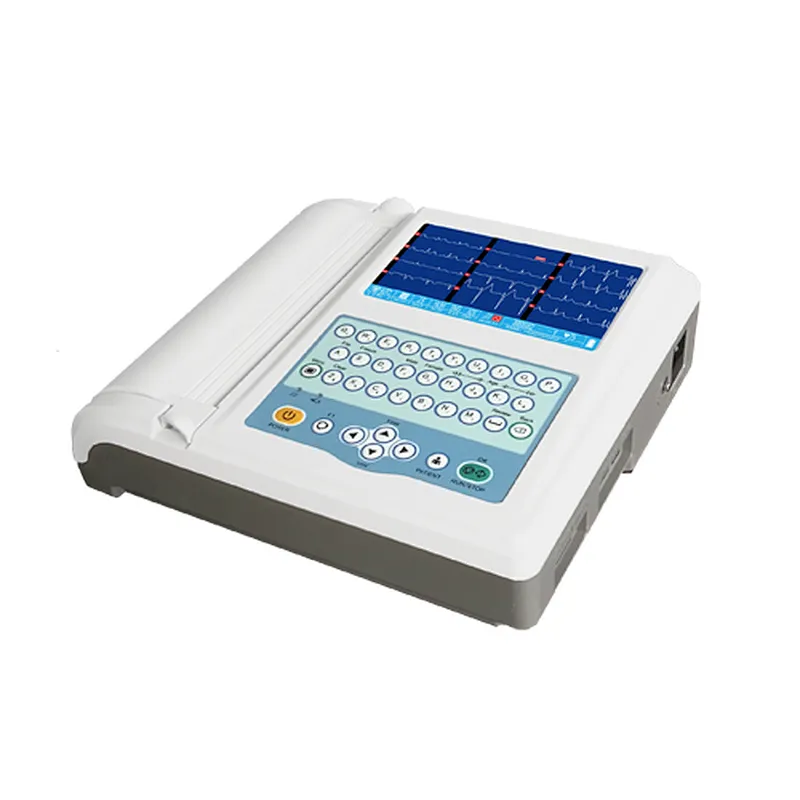

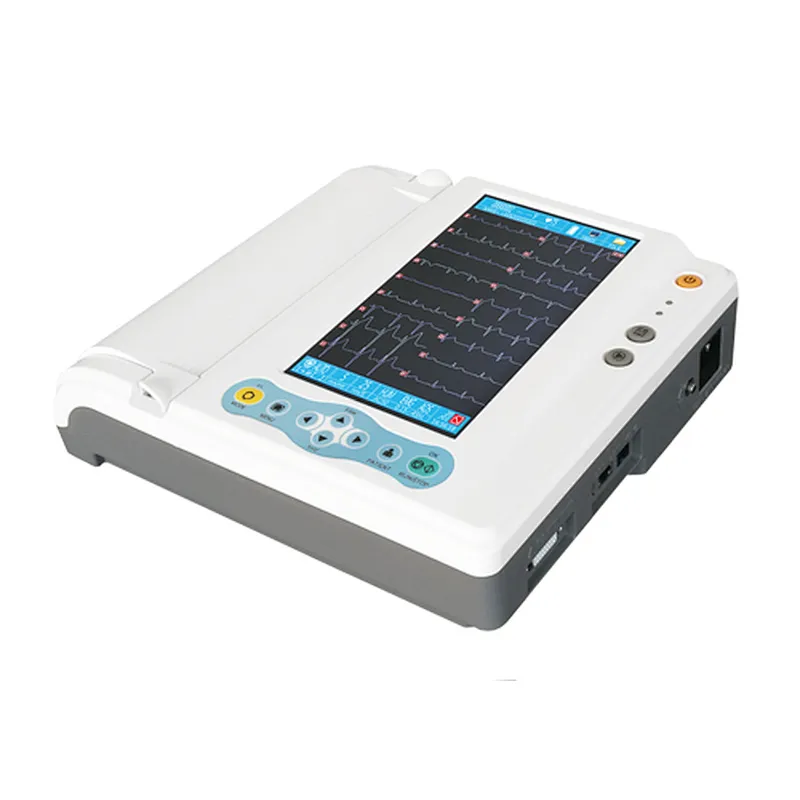

18 channel 12 leads ECG EKG Monitor machine

18 channel 12 leads ECG EKG Monitor machine

Product Features

---------------------------------------------------------------

1. Portable, delicate design, easy to cooperate.

2. Accurate pulse pace identification; High accuracy digital filter & auto baseline adjustment.
   18 leads synchronously acquisition and record; recording mode 3ch+++, 6ch+, 12ch, 6ch+++,9ch+. Four working modes : Auto / Auto 15 / Auto 18 / Man / R-R Rhythm / Storage.
   800x480 graphic, 9 inch color touch LCD to display ECG information
   400 patient cases storage and replay ( internal SD card is optional ).

3. With freeze function of freezing 12 seconds ECG.

4. 210mmx20m, roll paper, high resolution thermal printing ( optional for Z-fold paper ) . Rechargeable Li-ion battery supports long time continuous work.

5. Rs232 and USB port support USB flash storage and laser printer printing.
   PC ECG management software is optional.

6. Measurement : 310mm x 278mm x 76mm, 3.0kgs.

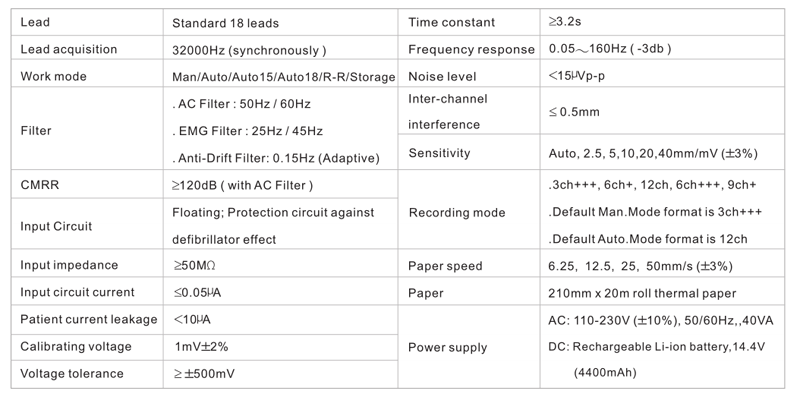

Specifications

---------------------------------------------------------------

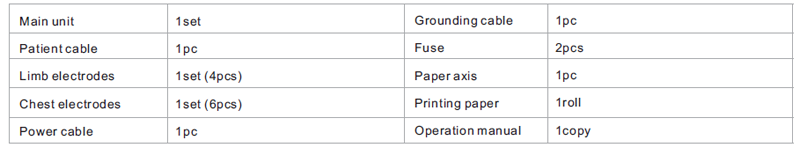

Packing List

-----------------------------------------------------------

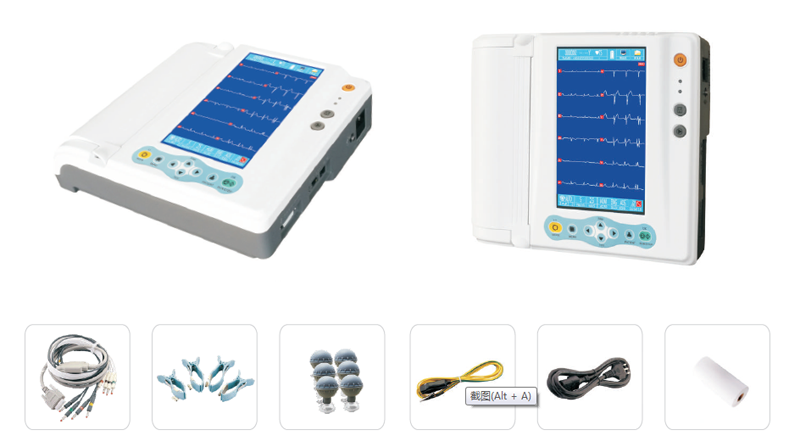

More Pictures

--------------------------------------------------------
