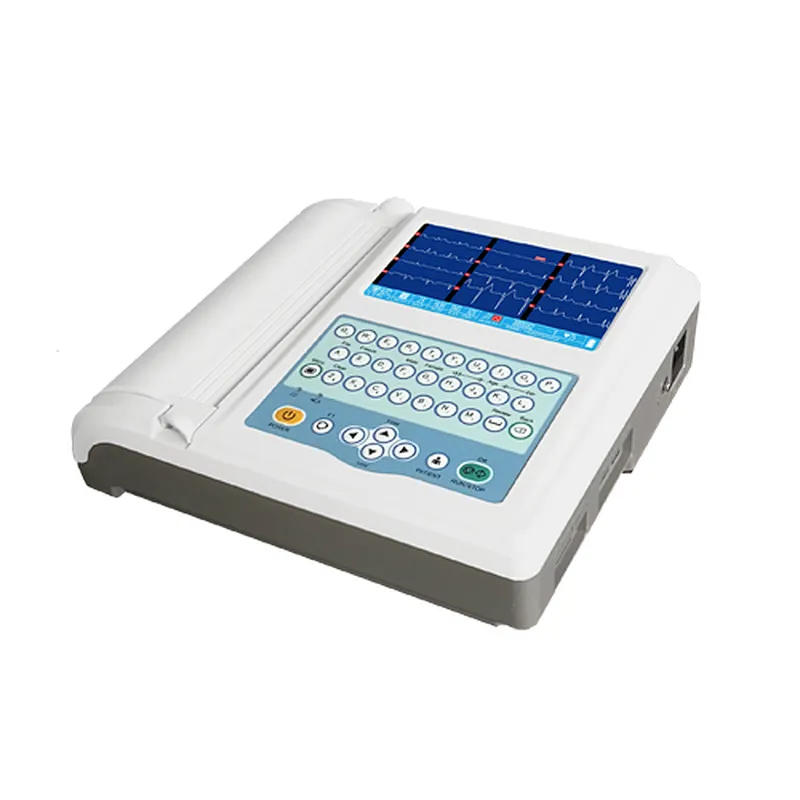

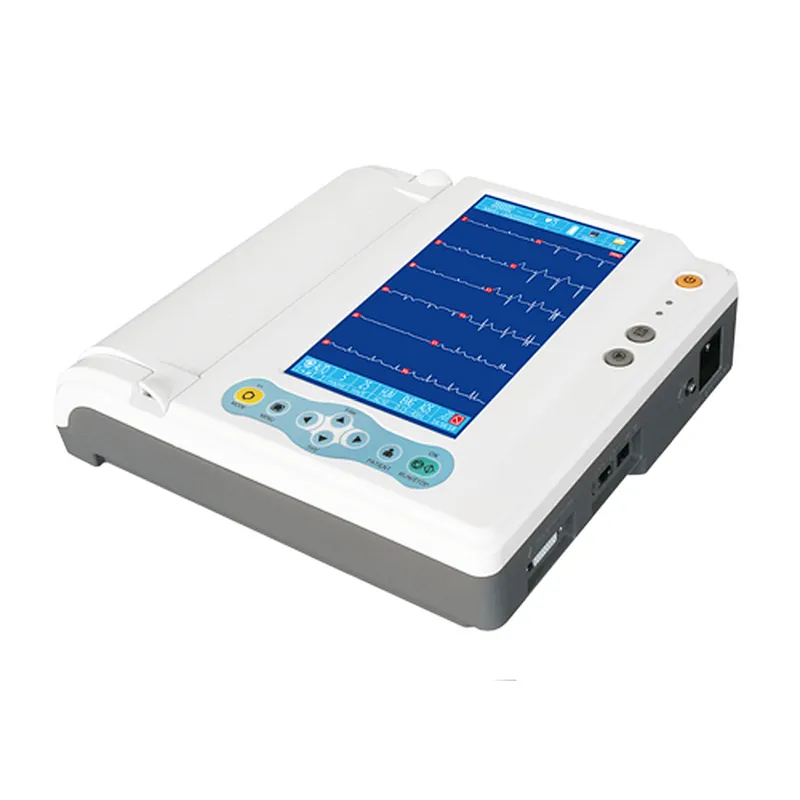

12 channel 12 leads ECG EKG monitor machine

12 channel 12 leads ECG EKG monitor machine

Product Features

-----------------------------------------------------------

1. Portable and delicate design, easy to operate

2. Accurate pulse pace identification function

3. High accuracy digital filter, automatic baseline adjustment

4. Working modes: Manual, Automatic, Arrythmia Analysis, Storage

5. 210mm, twelve channel format recording, excellent automatic interpretation

6. 800x480 graphic 7 inch color LCD to simultaneously display ECG information

7. Alphanumeric keyboard to operate

8. 250 patient cases storage and replay ( SD card is optional )

9. Detailed patient information record

10. Freeze function

12 . Available for 215mm*20m roll paper and 210mm*140mm Z-fold paper

11. Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery

12. RS232 and USB interface, optional for USB storage, external laser printer printing,

PC ECG software functions.

Specifications

-----------------------------------------------------------

Lead

Standard 12 leads

Time constant

≥3.2s

Lead acquisition

12bit/1000Hz (synchronously 12 leads)

Frequency response

0.05～160Hz(-3db)

Work mode

Man / Auto/Analysis/Storage

Noise level

＜15μVp-p

Filter

AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

Inter-channel Interference

≤0.5mm

CMMR

≥120dB (with AC FILTER)

Sensitivity

5，10，20, 40, Auto (mm/mV)

Input circuit

Floating; Protection circuit against

Defibrillator effect

Recording mode

3ch+++, 6ch, 6ch+, 12ch

Default Man. Mode is 3ch+++ format

Default Auto. Mode is 12 format

Input Impedance

≥50MΩ

Paper speed

6.25、12.5、25、50mm/s（±3％）

Input circuit current

≤0.05μA

Paper

215mm *20m or 210mm *140mm Z-fold thermal paper

Patient current leakage

＜10μA

Communication

RS232/ USB port

Calibrating voltage

1mV±2％

Power Supply

AC 110-230V(±10%),50/60Hz（±1Hz),60VA

DC Built-in rechargeable Li-ion battery,14.4V (4400mAh)

Voltage tolerance

≥±500mV

Dimension/Weight

347mm × 293mm × 83mm / 4.8Kg
