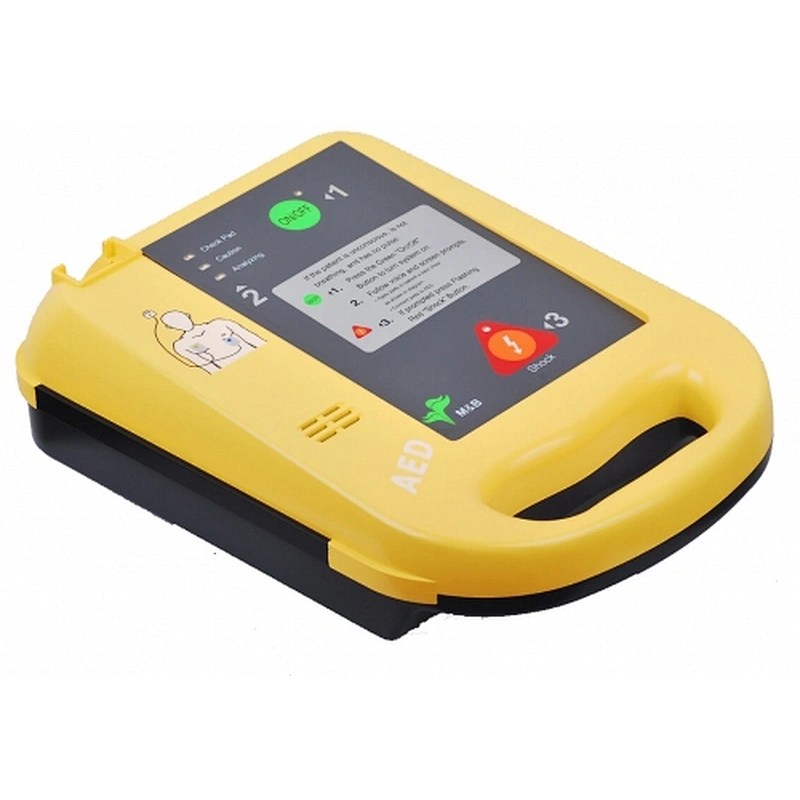

Portable Biphasic AED Defibrillator

Portable Biphasic AED Defibrillator

Specifications

Function: With AED Function

Specifications:

1.three-step defibrillation process

2.two-button operation

3.extensive voice and visual prompts for the operator

4.biphasic energy output

5.lock-out protection to prevent inadvertent defibrillation

Battery:

Category Specification

Part No CR123A-4x2

Non-rechargeable 12V d.c. 2.8Ah

Capacity 100 discharges at 200 Joules or 120 discharges at 150 Joules

Shelf Life (25℃±15℃) 5 years

Physical:

Category Specification

Dimensions 303 x 216 x 89 mm

Weight 2.0 kg

Operating Temperature 0℃ to 40℃

Operating Humidity Relative humidity between 30% and 95% (non-condensing)

Storage Temperature(without battery) -20℃ to 55℃

Storage Humidity(without battery) Up to 93% (non-condensing)

Electrical Isolation:

Category Specification

Power Unit operates on internal battery only

External Electrical No external devices are attached to the unit

Risk Current Category Internally powered equipment with defibrillator-proof BF type patient applied part (as per definition of IEC 60601-1 standard)
