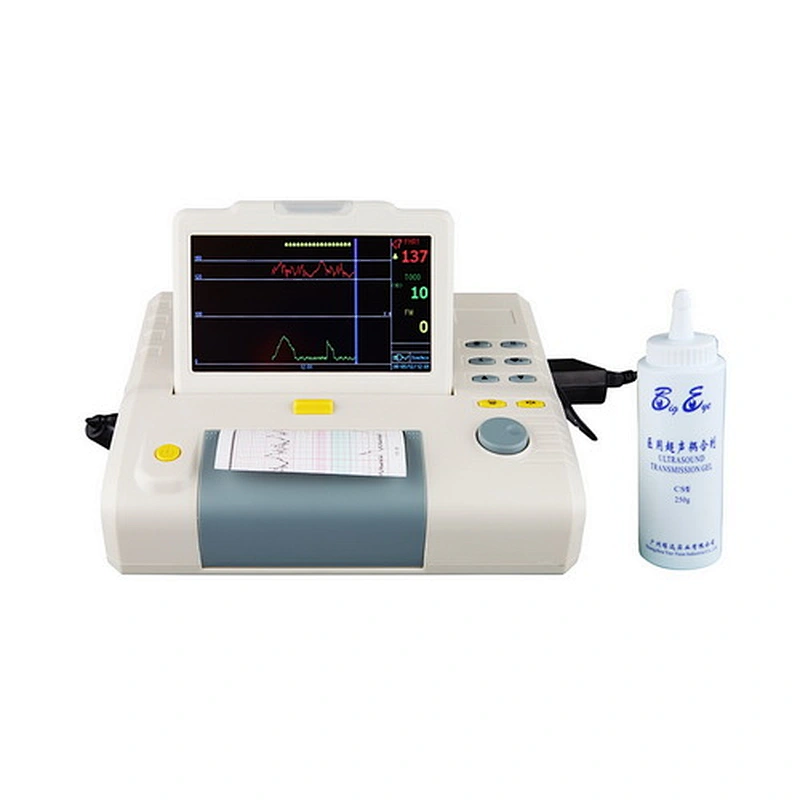

7inch Screen Fetal Monitor
Specifications:
Compact and lightweight design
7"color TFT screen, folding 90 degrees
Built-in high dot matrix thermal printer with long life
A standard patient event marker and a clinical event marking button to mark clinical events separately.
Auto fetal movement are available.
Multi-crystals, wide beam forming, high sensitivity ultrasound transducer, low ultrasound power
AC or Li-ion battery
More than 12 hours data storage, which can be recalled and reprinted.
Technical Specifications
Fetal Heart Rate Multi-crystal,pulsed doppler,high sensitive
Transducer Strengh <5mW/cm2
Working frequency 1.0MHz
Signal processing special DSP system and mode recognization
Measurement range 50~210 bpm
Alarm Range: High: 160 170 180 190 bpm
Low : 90 100 110 120 bpm
The largest audio output power 1.5W

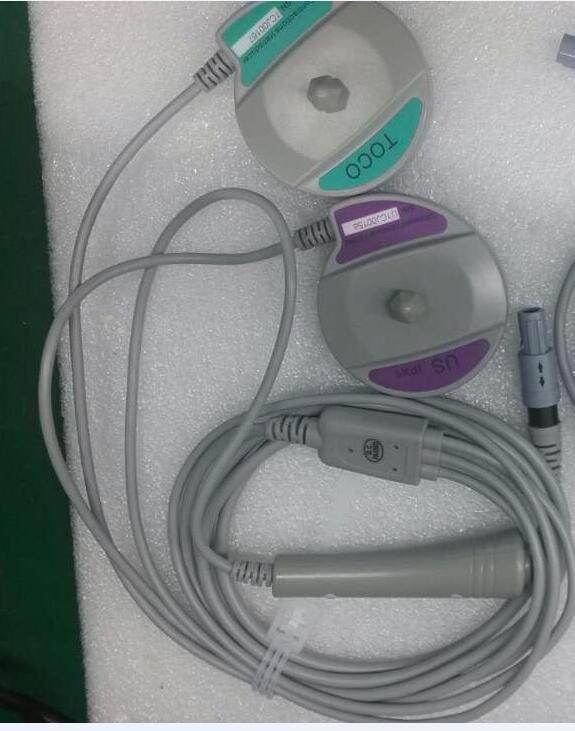

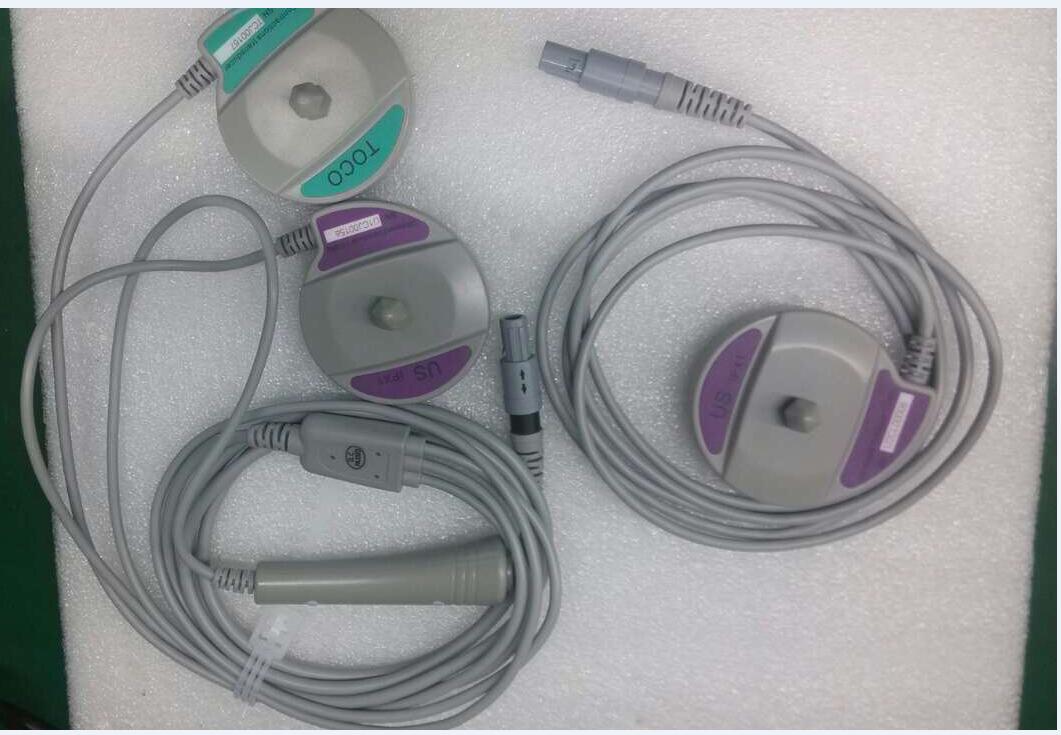

TOCO
Measurement range 0~100units
Battery working time 2 hours(no printer working)
Speaker 1W
Power Supply AC 220V±20%，50Hz or 8.4V Li-battery
Power consumption <20W
Working Environment Temperature: 10~40 ℃, RH: 10~80%
Transducer Acoustic Output Under the requirements laid down in IEC 1157, 1992, the peak negative acoustic pressure does not exceed 1Mpa. The output beam intensity does not exceed 20mW/cm2 and the spatial-peak temporal-ave rage intensity does not exceed 100mW/cm2
Dimension 295W×240D×73H×mm
Net weight 1.75kg
Standard: FHR, TOCO, FM
Standard Accessories,only for one baby
Optional:
Twins Exam Function
FAS(Fetal acoustic simulator)
Printer Paper

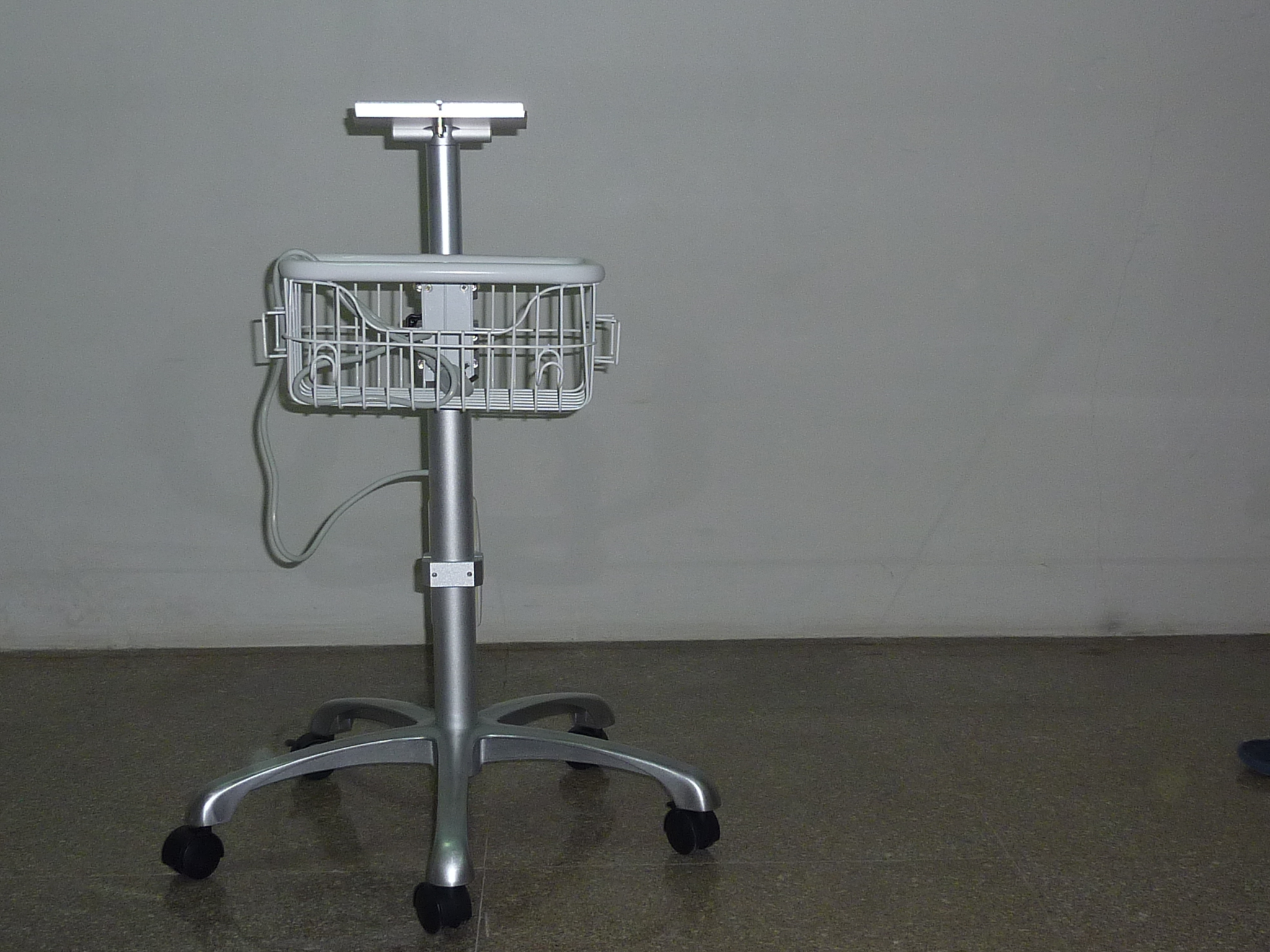

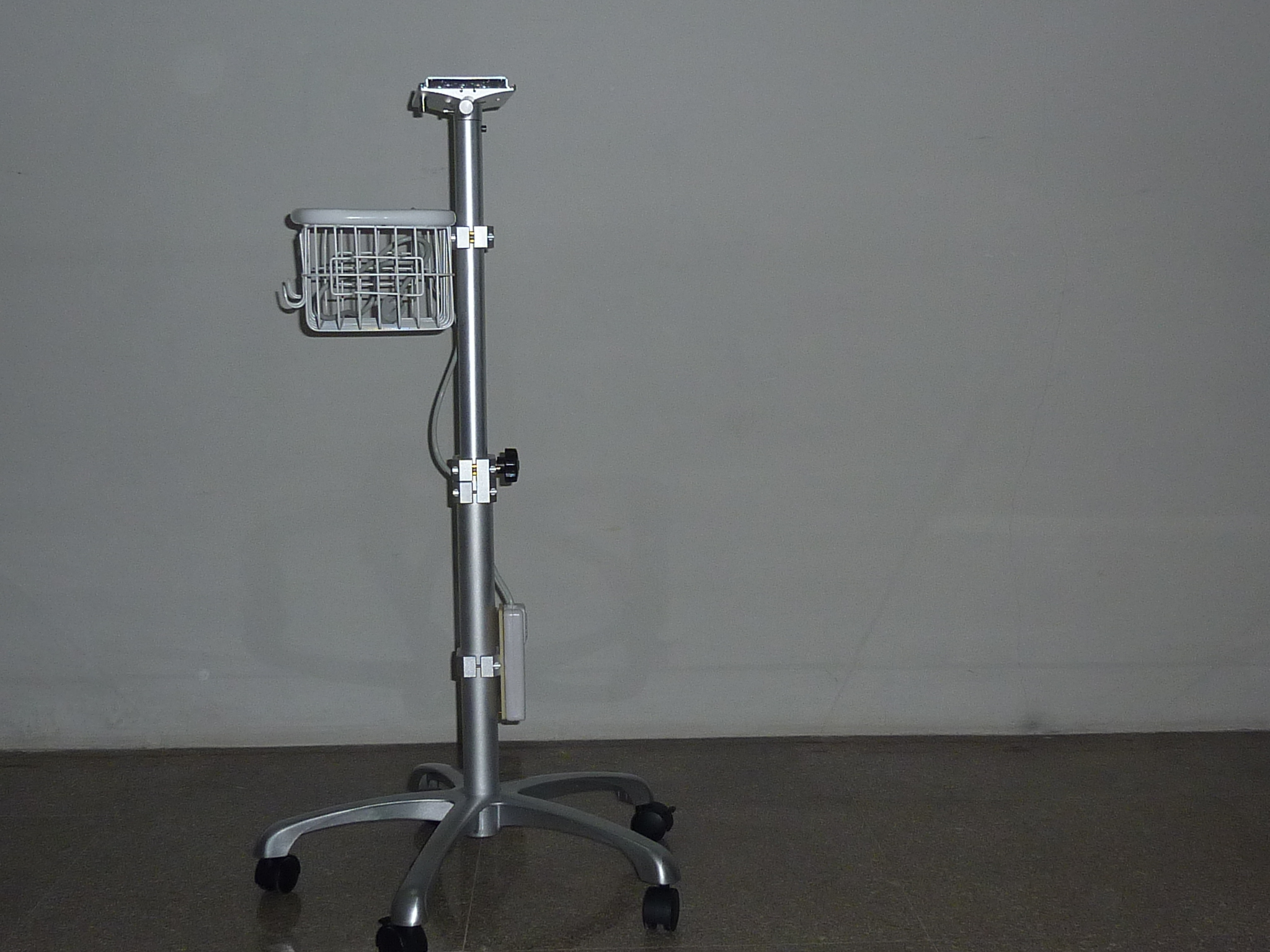

Mobile Stand/ cart
