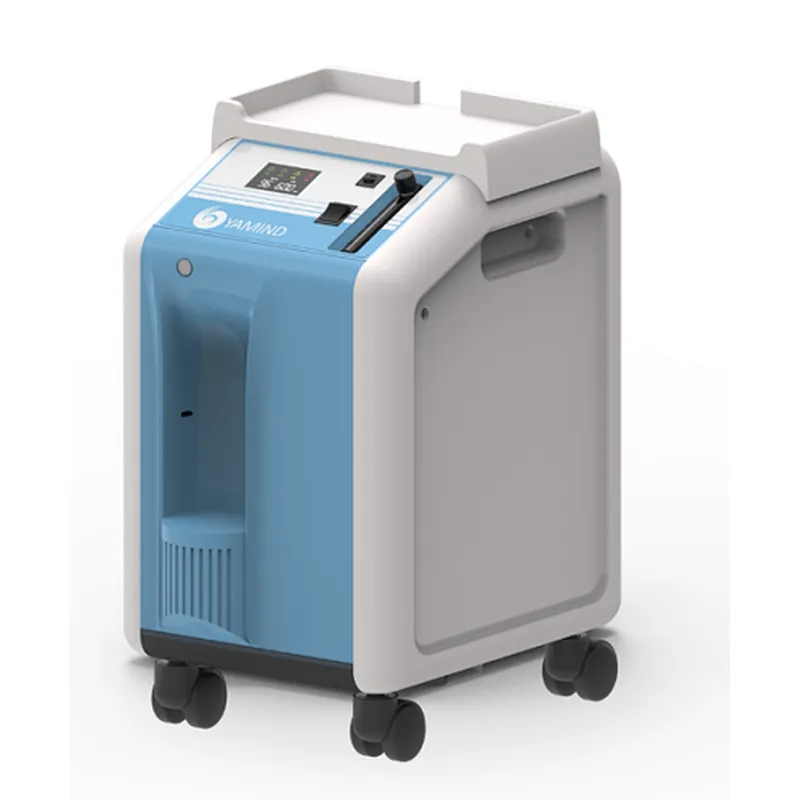

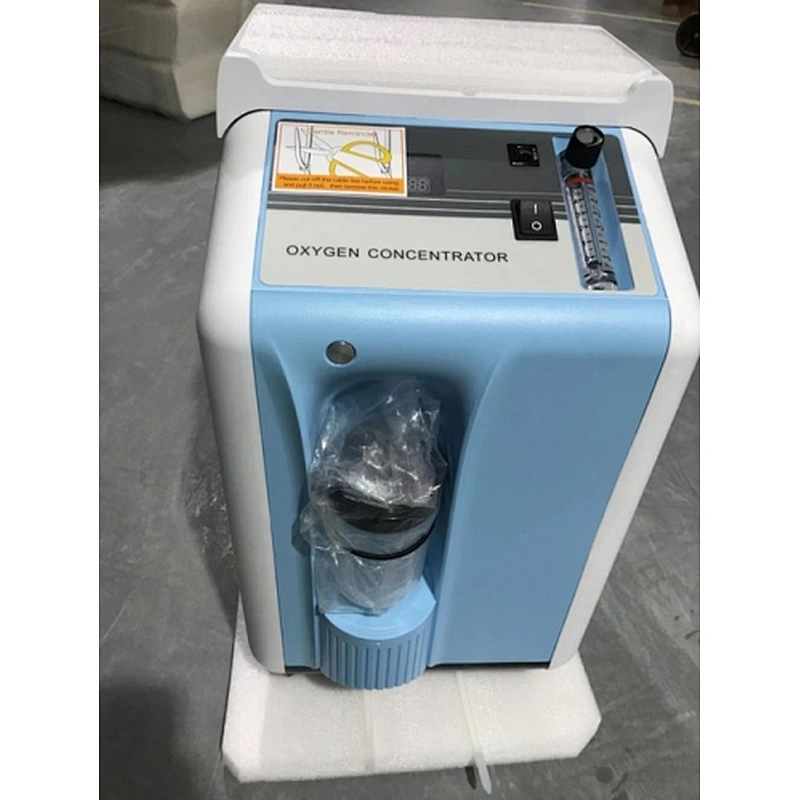

5L Oxygen Concentrator

Model NO.: WSC503
Price:: US $ 4069.00-4119.00

Quantity:

Product Description

5L Oxygen Concentrator

Specifications:

Working Voltage

230 V～ ± 10% / 50 Hz ± 1 Hz

Rated Power （VA）

320

Output Pressure=0/7kPa,
the flow range（L/min）

0.5～5

Output Pressure=0,the
purity value（within 10min,
up to the standard）

Oxygen flow=0.5～5 L/min，purity≥90%

Highest Flow

5 L/min

Highest Flow with 7kPa pressure，change of flow

≤0.5 L/min

Highest Flow, purity（within 10min，up to the standard

≥90%

Range of adusting flow

0～5L/min adusted continously

Net Weight（Kg）

15.3

Noise dB(A)

Dimension（mm）

L400 × W300 × H540

Oxygen output pressure

40kPa-60kPa

Yellow low oxygen indicator light

When 72%≤purity≤82%，the yellow indicator will shin,contact the supplier, Make sure have the spare
oxygen nearby when use it continously.

Red alarm indicator light

When purity ≤72%，red indicator will alarm，and dispaly show Lo-o2.It will stop within one minute.Please turn off at once and choose the spare oxygen , contact
the supplier

Packing List

Number	Product /Component Name	Quantity	Unit
1	Oxygen Concentrator	1	Piece
2	Humidification Bottle	1	Piece
3	Silica Gel Tube(2.9mm×6mm×300mm)	1	Piece
4	Humidified Bottle Connecting Tube (2.9mm×6mm×650mm)	2	Piece
5	Air intake flitering foam	1	Piece
6	User Manual	1	Piece
7	Three way pipe	1	Piece
8	Quick StartYC-28
